Talent II Series

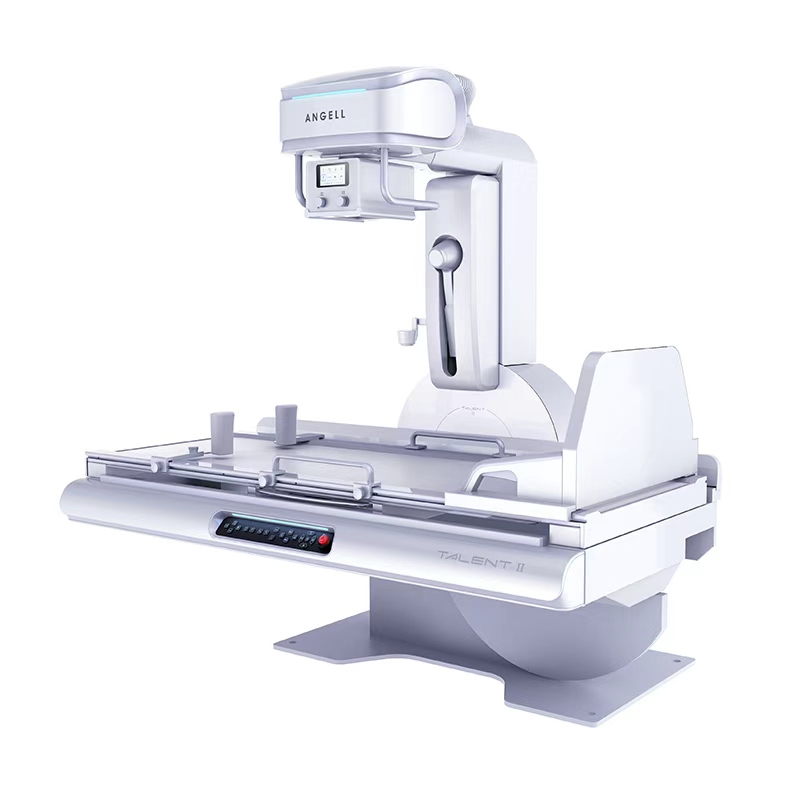

Talent II Digital R/F Table System
Talent II is a radiography fluoroscopy table built for GI contrast studies, routine digital radiography, LF-TOMO review and long-length stitching in multifunctional imaging rooms.
- 1.1m LF-TOMO
- GI fluoroscopy workflow
- 360-degree rotating pedal
- 17x17 inch dynamic FPD

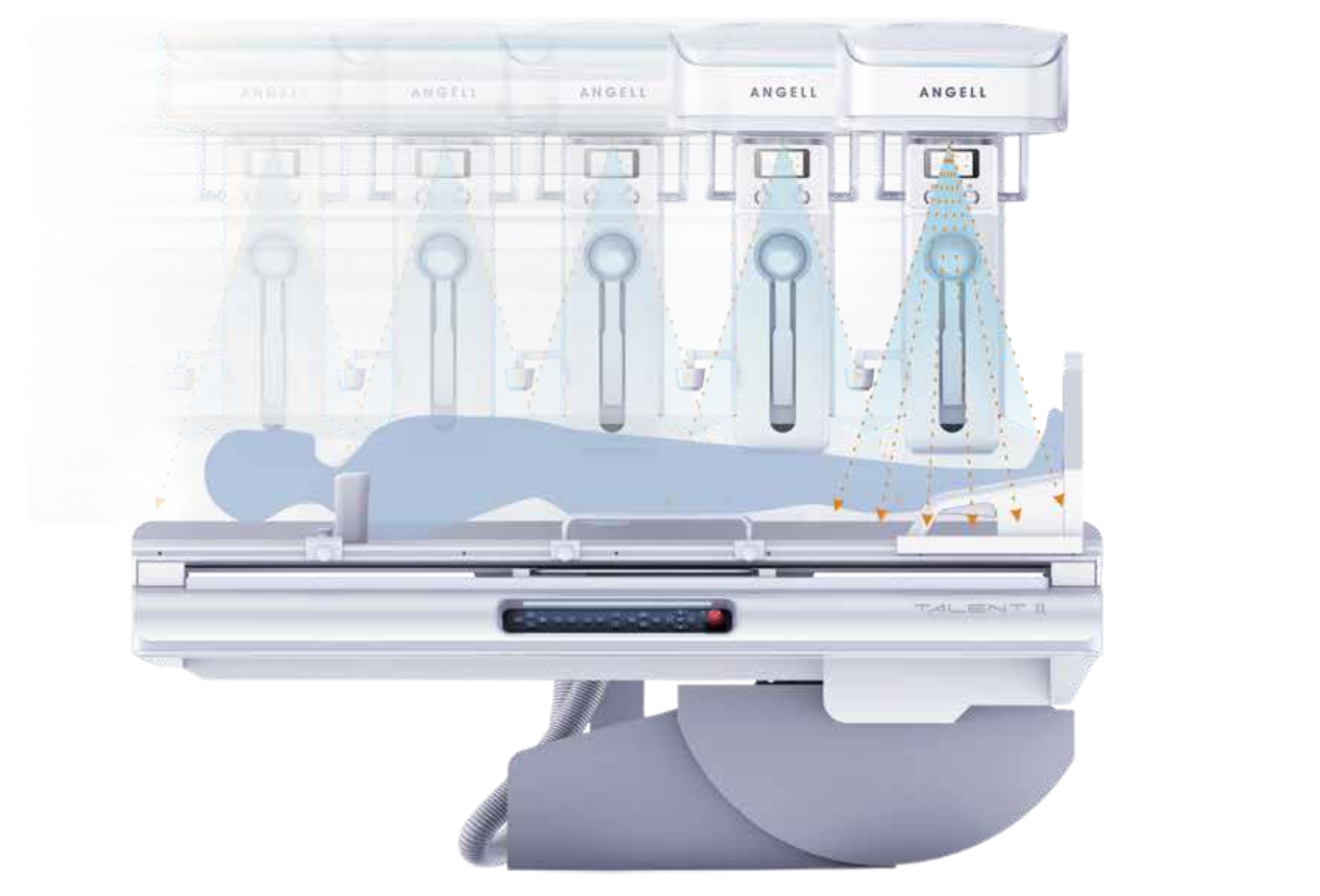

1.1m LF-TOMO
Wide-range tomosynthesis for long anatomical coverage
Talent II uses synchronized tube and detector movement to acquire multi-angle projection data for LF-TOMO reconstruction. The 1.1m scanning range adds long-area views such as full-spine and lower-limb examinations to a digital R/F table workflow.
- Parallel tube-detector motion
- Layered tomographic review
- Long-range coverage
Tomographic review
Reduce overlapping anatomy in selected examinations
LF-TOMO separates anatomical layers at different depths, giving clinicians a layered view of structures that can overlap in a single projection. The function adds tomosynthesis review to routine R/F examinations and follow-up imaging.
- Layer-by-layer viewing
- Chest and orthopedic follow-up
- Clearer structural separation
Dynamic FPD platform
High-resolution detector hardware for R/F workflows
The system is configured with a large dynamic flat panel detector for radiography and fluoroscopy acquisition. The detector size and dynamic imaging capability provide clear specification points for room planning and tender comparison.
Multi-mode examination

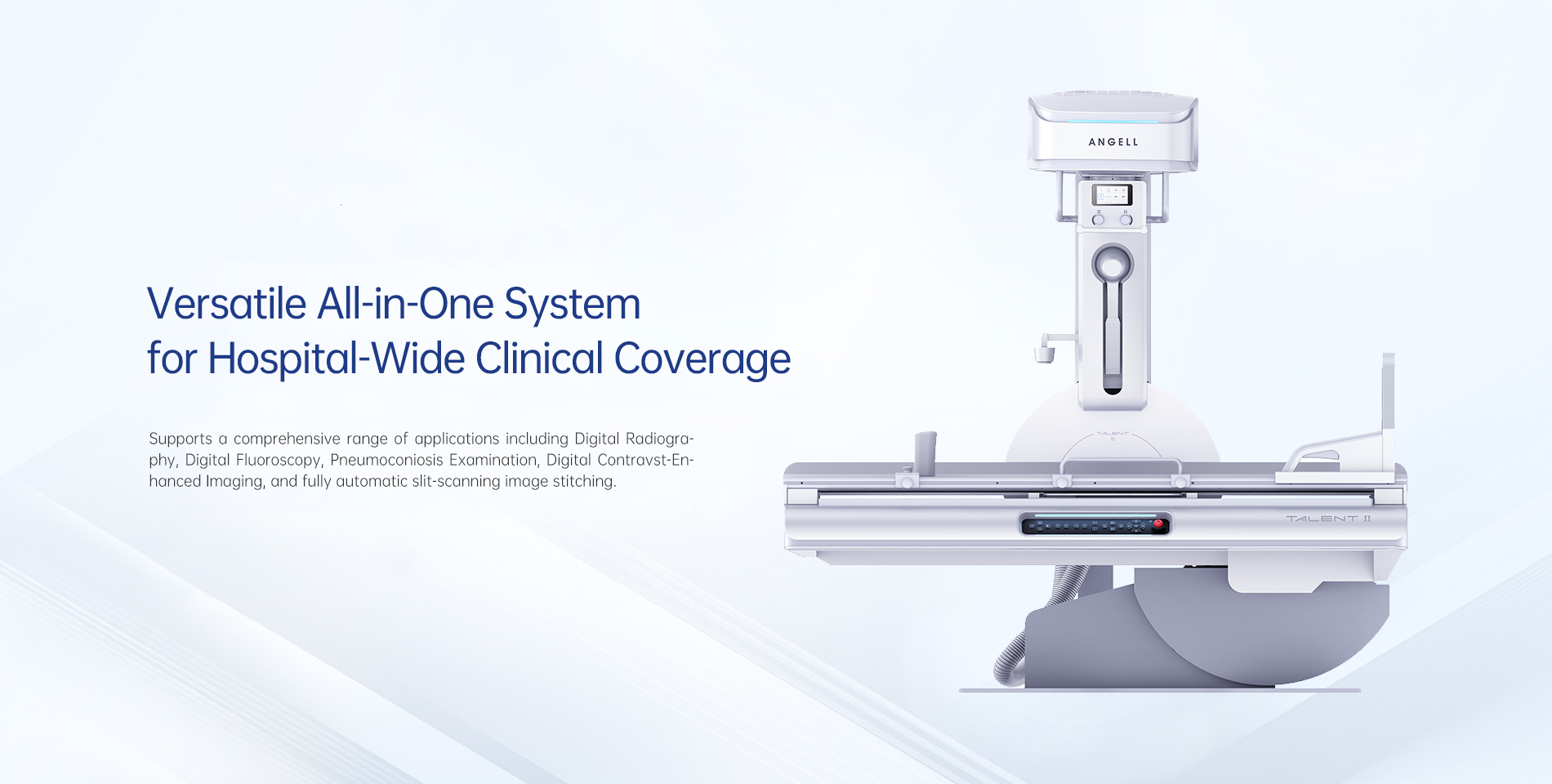

Radiography, fluoroscopy and GI contrast studies on one table
As a gastrointestinal X-ray table, Talent II combines live fluoroscopy, routine radiography and GI contrast examinations on one platform. Motorized positioning and table-side operation support smooth transitions between standing, lying and application-specific views.
Image processing and stitching
Processing tools for long-length and follow-up imaging

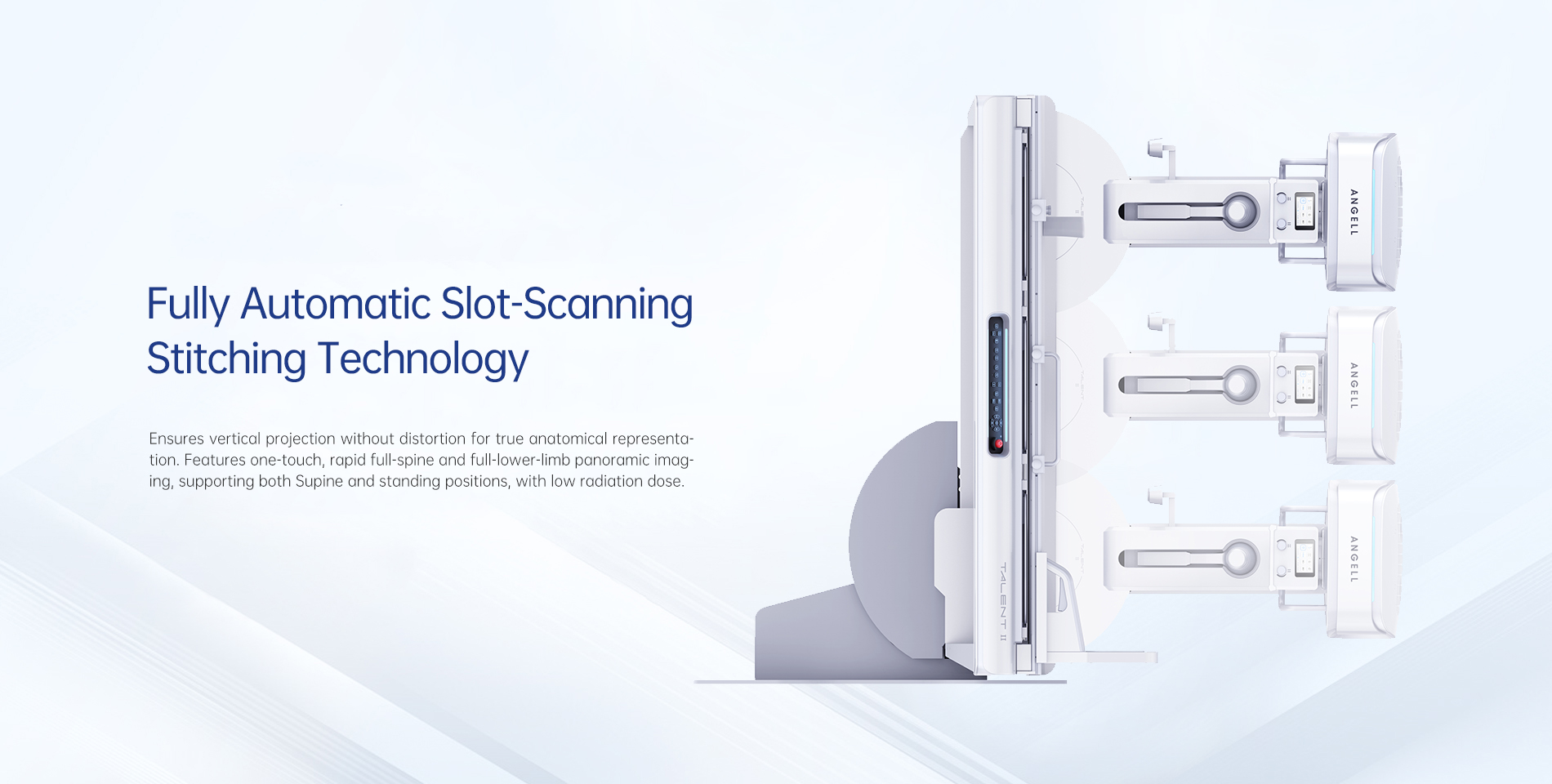

The independently developed image processing system includes denoising, tissue equalization, ROI grayscale compensation, degrid processing and metal-area recognition. Automatic slit stitching supports full-spine and lower-limb views across extended anatomical coverage.
- Automatic slit stitching
- Intelligent denoise
- Metal-area processing
- Tissue equalization
User-centered operation
360-degree positioning controls for R/F examinations
The system combines a 360-degree rotating pedal, motorized positioning, guided controls and room-side communication tools, reducing repeated movement between patient positioning and the control area during setup.
One-key positioning
High-speed switching between standing and lying positions, together with a 715 mm low table height, supports routine table access across different exam types.
Camera and intercom
1080P wide-angle visual guidance and voice communication support patient positioning from the operator area.
Collimation support

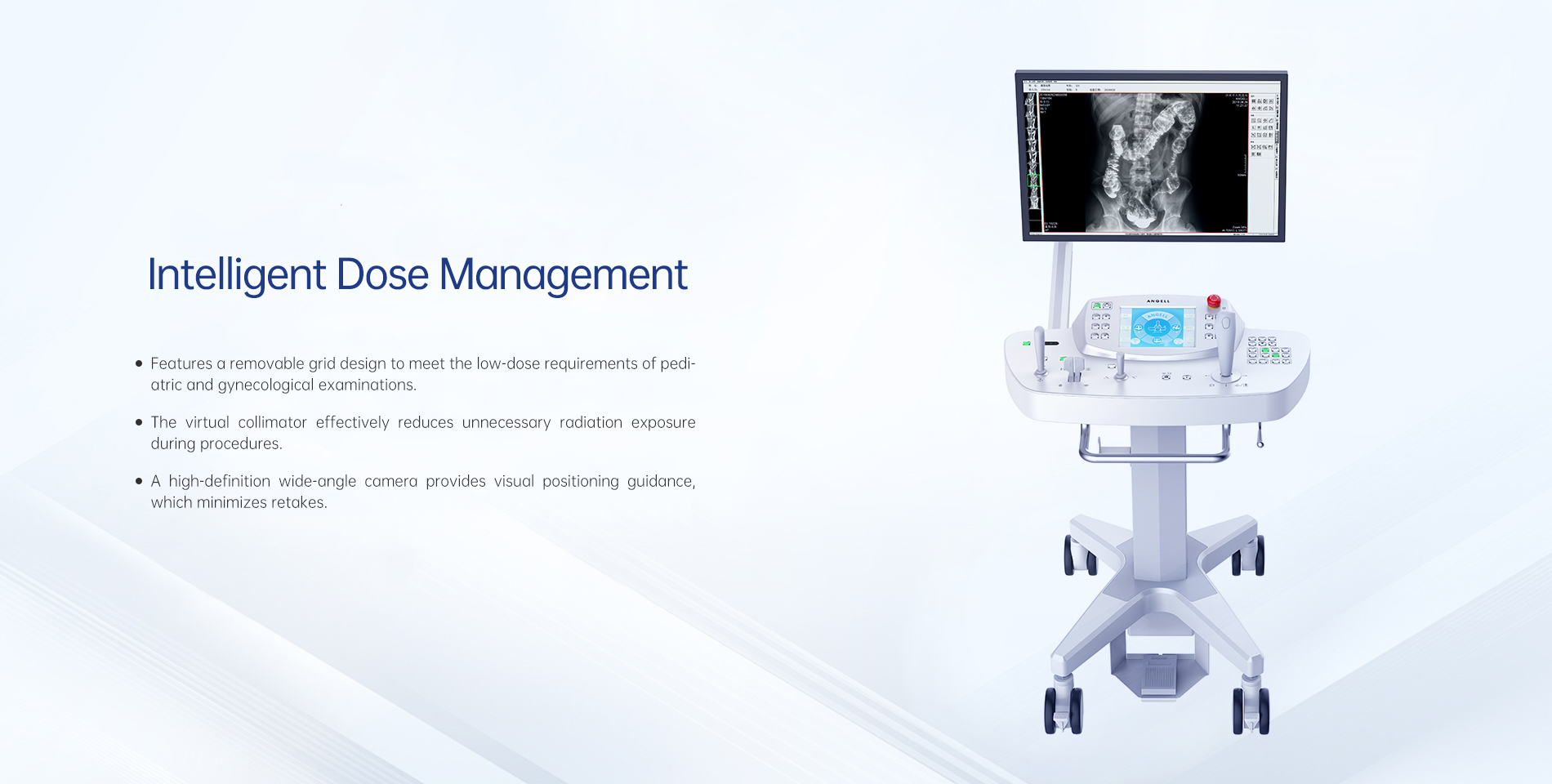

Virtual collimator, intelligent collimation and last-frame hold functions define the exposure field and review reference images before acquisition.
Tube movement range
0/90/180-degree tube head rotation, with column angulation support for dedicated radiographic views.
Bedside touch control
Common operations are available near the patient through a tube-panel touch interface.

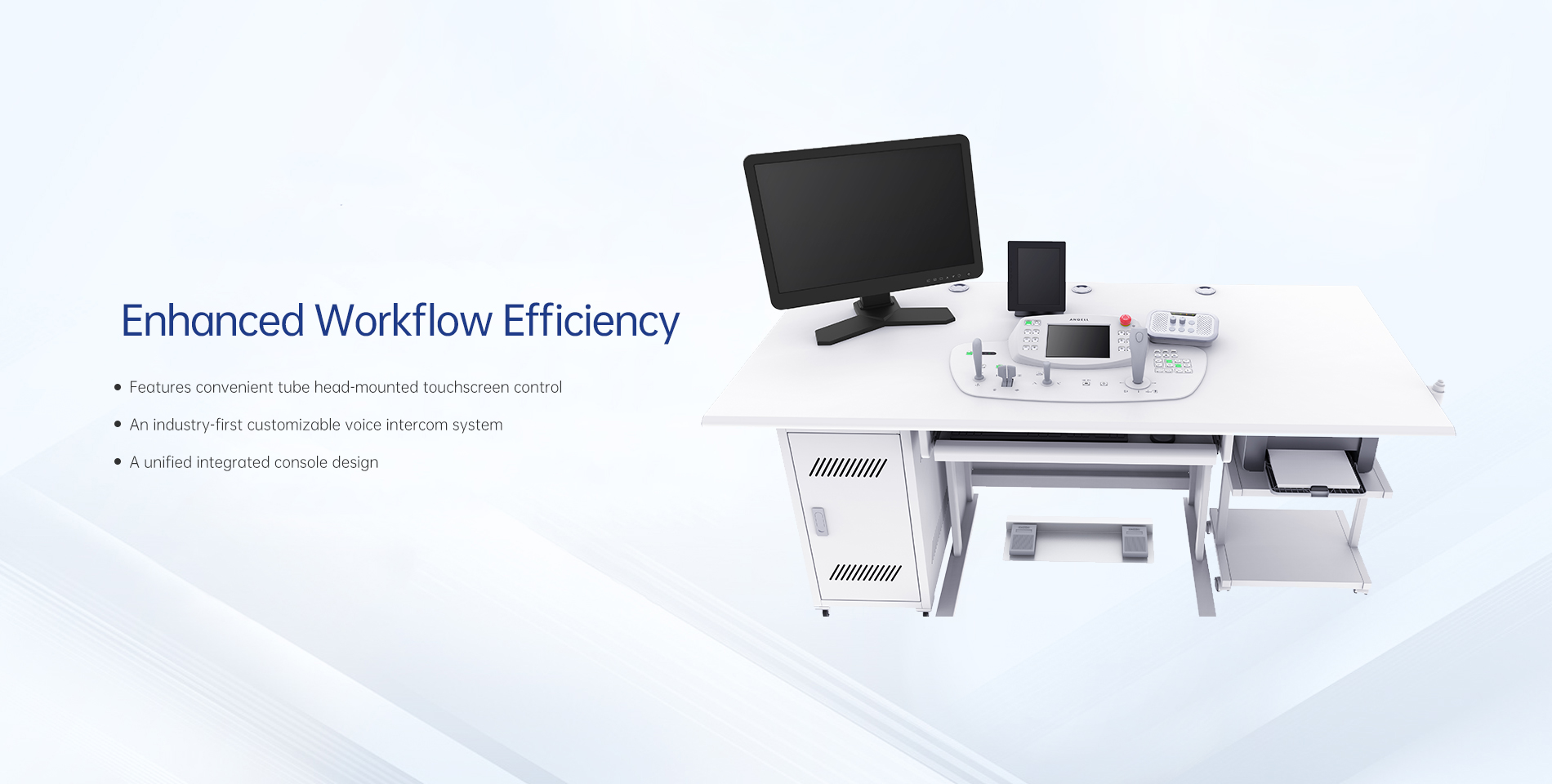

Integrated console
Centralized controls support coordinated setup for GI fluoroscopy, routine radiography and stitching workflows.
Clinical room fit
Clinical applications for a GI fluoroscopy table
Talent II is configured for rooms that handle gastrointestinal X-ray table studies, dynamic fluoroscopy, routine digital radiography, long-length orthopedic views and follow-up imaging around metal implants.
- Barium swallow, GI contrast studies and live fluoroscopic observation.
- Routine digital radiography across table, upright and stretcher-related positioning.
- Full-spine and lower-limb stitching for long anatomical alignment views.
- Postoperative orthopedic follow-up supported by metal-area image processing.
